| 4 Port HDMI video splitter |
|

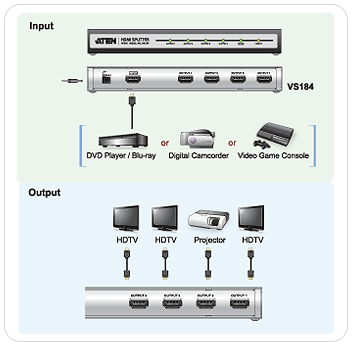

The 1:4 HDMI™ Distribution Amplifier is the perfect solution for anyone needing to send one source of digital high definition video to multiple displays similtaiously. It supports all HDMI™ equipment, such as DVD players, satellite set top boxes, and all HDMI displays. In operation, the digital video source is connected to the input side of the splitter and the output is connected to the displays. Once the unit is connected and powered, your source is routed to as many as four digital displays at the same time. |
|
|
 |
|
|
-
Connects up to four HDMI™ displays to one video source
-
Supported Resolutions : HDTV 480p, 720p, 1080i and 1080p, VGA, SVGA, SXGA and UXGA (1600x1200)
-
Long distance transmission - up to 15m for 28 AWG , or 20m for 24 AWG HDMI standard cables
-
DDC Compatible
-
HDMI 1.3a compliant
-
HDCP 1.1 compliant
-
Data Rate is 250Mbps~2.25Gbps
-
Deep Color up 12-bits for HDMI Formats
-
Sturdy all metal casing
|
|
|
|
|
- 1x VS184
- 1x Power adapter
- 1x Quick Start Guide
|
|
|
|
|
| Power |
| Voltage |
110V-240V |
| LEDs |
| Power On |
1 x Orange |
| Selected |
4 x Green |
| Input |
1 x Green |
| Power Consumption |
13 Watts (max) |
| Power Connections |
5.3 VDC |
| Power Input Rating |
| Per AC Power Inlet, 50/60Hz |
110V-240V |
| Power Adaptor Part # |
| for North America |
0AD8-0605-24EG |
| for Continental Europe |
0AD6-1605-241G |
| for UK |
0AD4-3605-241G |
| Physical Properties |
| Housing |
Metal |
| Case Weight |
33.5 lbs. |
| Unit Weight |
1.0 lbs |
| Unit Weight with package |
1.6 lbs |
| Case Dimension |
19.7 x 13 x 13.4 in |
| Case Qty |
20 |
| Unit Dimension |
7.9 x 3.14 x 1 in |
| Unit Package Dimensions |
9.375 x 6.31 x 2.63 in |
|
|
|
| | |
|
| |
