| 4-port USB-to-Serial RS-422/485 Hub |
|

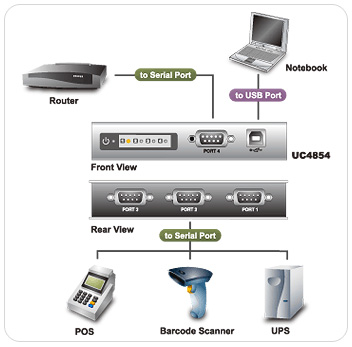

The UC4854 is the converter that transform the USB port to your computer into four asynchronous RS-422 or RS585 serial ports. This unit supports RS422/485 Auto Detect & Switch technology so when there is defined activity on the connected serial device, the converter automatically switches to the active serial port. Compatible with both USB 1.1 and 2.0, these devices can transfer data up to 115.2Kbps.
Because UC4854 operates with plug-and play ease(under Windows) or with the provided Linux driver via a USB port interface, it doesn't require any IRQ, DMA or I/O addressing resources. Embedded electrostatic surge protection, prevents damage to serial devices caused by air discharges as high as 15,000 volts. |
|
|
|
|
|
- Connects USB computer port to external serial devices using a DB-9 Serial interface for RS-422 or RS-485 communication.
- Full compliance with the USB 1.1 and USB 2.0 specifications
- Max data transfer rate up to 115Kbps
- Compatible with Window 2000 through Vista as well as Linux 2.6x or higher
- Dual dat buffers for upstream and downstream data flow
- Support RS-485 auto RTS Signal Control technology
- Auto detect and switch technology
- Hot-Swap and plug-n-play supported
- Wake on line ans power management supported
|
|
|
|
|
- Computer with free USB port*
- Windows 2K, XP, Vista
- Linux 2.6 (or higher)
*Will not work through a USB Hub |
|
|
|
|
- 1 x UC4854
- 1 x USB Cable
- 1 x Installation Disk
- 1 x User Manual
- 1 x Quick Start Guide
|
|
|
|
| LEDs |
| Power On |
1 (Orange) |
| Port Status |
4 (Green) |
| Power Consumption |
0.5W |
| USB Specification |
USB 1.1 and USB 2.0 Compatible |
| Data Rate |
115.2 Kbps(Max.) |
| Connectors |
| Power |
1 x DC Jack |
| USB |
1 x USB Type B Female |
| Serial |
4 x DB-9 Male |
| Debug Support |
4 |
| Environment |
| Operation Temperature |
32~122 F (0~50C) |
| Storage Temperature |
-4~140 F (-20~60C) |
| Humidity |
0~80% RH, Non-condensing |
| FIFO |
16 byte Hardware FIFO |
| RS-422/RS-485 Selection |
Auto-detect and Switch |
| RS-422 Signal |
TxD+/-, RxD+/-, RTS+/-, CTS+/-, GND |
| RS-485 Signal |
Data+/-, GND |
| Data Bit |
5,6,7,8 |
| Stop Bit |
1, 1.5, 2 |
| Power Mode |
Bus Powered(Power adapter is optional) |
| Weight |
| Unit Wt. w/accessories |
1.6 lb. (0.7kg) |
| Unit Wt. |
0.8 lb. (0.4 kg) |
| Physical Properties |
| Housing |
Metal |
| Case Weight |
17.6 Lbs (8 kg) |
| Unit Weight |
0.7Lbs (0.32Kg) |
| Unit Weight with package |
0.84Lbs (0.38KG) |
| Case Dimension |
19.7 x 13 x 13.8in [50 x 33 x 35cm] |
| Case Qty |
20 |
| Unit Dimension |
7.9in (20cm) x 2.4in (8cm) x 1in (2.5cm) |
| Unit Package Dimensions |
(16.2cm) x 9.3in (23.8cm) x (6.0 cm) |
|
|
|
| | |
|
| |
