| 4-port USB to Serial RS-232 Hub |
|

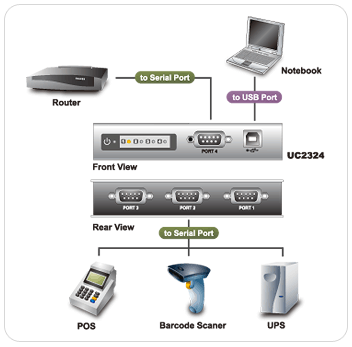

ATEN's UC2324 is a RS-232 to USB converters which offer the user 4 serial port connection through USB interface. People can connect multiple serial devices through one USB port on their system. Each serial port offers data transfer rate up to 115.2 Kbps for high performance. UC2324 provides a quick, simple, and cost-effective solution and is ideal for various communication and automation applications.
|
|
|
 |
|
|
- Easy way to add 4 RS-232 serial ports
- Fully compliant with USB 1.1; USB 2.0 compatable
- Support RS-232 interface
- Support automatic handshake mode
- Up to 115.2Kbps data transfer rate for each serial port
- Support remote wake up and power management
- Dual data buffers for each upstream and downstream data transfer
- No IRQ, DMA, I/O address resources required
- Supports hot-swapping and plug-and-play
- Built-in 16KV ESD protection
- Supports both bus power and external power
|
|
|
|
|
- Computer with free USB port*
- Windows 2K, XP, Vista
- Linux 2.6 (or higher)
*Will not work through a USB Hub |
|
|
|
|
- 1 x UC2324
- 1 x USB Cable
- 1 x Installation Disk
- 1 x User Manual
- 1 x Quick Start Guide
|
|
|
|
| LEDs |
| Power On |
1 (Orange) |
| Port Status |
4 (Green) |
| Power Consumption |
0.5W |
| USB Specification |
USB 1.1 and USB 2.0 Compatible |
| Data Rate |
115.2 Kbps(Max.) |
| Connectors |
| Power |
1 x DC Jack |
| USB |
1 x USB Type B Female |
| Serial |
4 x DB-9 Male |
| Environment |
| Operation Temperature |
32~122 F (0~50C) |
| Storage Temperature |
-4~140 F (-20~60C) |
| Humidity |
0~80% RH, Non-condensing |
| Device Connection |
4 |
| FIFO |
16 byte Hardware FIFO |
| RS-232 Signal |
TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI GND |
| Data Bit |
5,6,7,8 |
| Stop Bit |
1, 1.5, 2 |
| Power Mode |
Bus Powered(Power adapter is optional) |
| Weight |
| Master Carton Wt. |
34 lb. (15.5 kg) |
| Unit Wt. w/accessories |
1.6 lb. (0.7kg) |
| Unit Wt. |
0.8 lb. (0.4 kg) |
| Physical Properties |
| Housing |
Metal |
| Case Weight |
34 lb. (15.5 kg) |
| Unit Weight |
.7 Lbs (.32 kg) |
| Unit Weight with package |
.84Lbs (0.38kg) |
| Case Dimension |
19 3/4 x 13 x 13 3/4 in. (50x 33x 35 cm) |
| Case Qty |
20 |
| Unit Dimension |
1 x 4 7/8 x 3 1/4 in. (2.6 x 12.4 x 8.3 cm) |
| Unit Package Dimensions |
6 3/8 x 9 3/8 x 2 3/8 in. (16.2 x 23.8 x 6.0 cm) |
|
|
|
|
| | |
|
| |
