| KH2516 |
|
The KH2516 Cat 5 KVM Switches are dual channel devices, allowing two operators to independently and simultaneous access up 16 directly connected computers, and up a maximum of 4096 servers through three level cascading

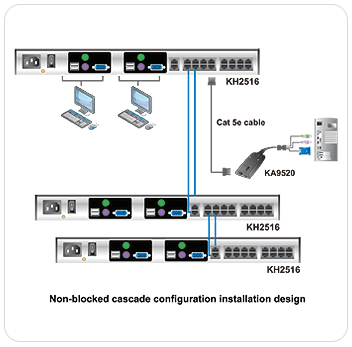

Cascading is achieved via dedicated RJ-45 cascade ports and Cat 5e cabling. Both, first level consoles are able to access all 4096 computers in the installation, on the second tier, one console can access second and third level servers, and one console on the third level can access third level servers.
Security consists of two level access (Administrator and User) password / user name protected. The Administrator can set user access on a port-by-port basis, and as many as 96 user accounts can be created.
The Cat-5 connections allow servers to be separated from the KVM by up to 130 ft with a maximum video resolution of 1280 x 1024 @75Hz
The KVM supports mixed environments of Windows, MAC , Linux, Unix, Novell, and OS/2 and employs keyboard emulation for special Mac and Sun keys. |
 |
|
|
|
|
|
- Two KVM consoles independently and simultaneously control up to 16 directly connected computers
- Cascade up to 3 levels of switches to support up to 4096 computers
- Video resolution – 1280 x 1024 @ 75 Hz up to 40 m; 1600 x 1200 @ 60 Hz up to 30 m
- Multiplatform support: PC, Mac, Sun, and serial
- Backup and restore configuration settings to an external flash drive to simplify installation for disaster recovery
- No software to install – convenient computer selection via graphical on-screen display (OSD) menus
- Supports two-level user access control (administrator and user)
- Supports up to 96 user accounts
- Configure port access rights for users on a port-by-port basis
- Diversified port operation mode enables flexible computer management – Occupy, Exclusive and Share modes
- OSD port list automatically expands when stations are added
- Port names are automatically reconfigured when the station/computer sequence is changed
- OSD screen automatically adjusts to resolution changes
- Auto Scan mode enables continuous monitoring of user-selected computers
- User activity log support
- Console conversion – any type of KVM console can control any type of computer; mixed combinations
- (PS/2 & USB) supported on both the KVM console and computer sides
- USB / PS/2 keyboard and mouse emulation – computers boot even when the KVM console focus is elsewhere
- Hot pluggable – add or remove components without having to power off the KVM switch
- Free lifetime firmware upgrades
- Effortlessly upgrade an entire installation – automatically upgrade all cascaded switches and adapter
- cables directly from the root station
- Compact design – rack mounts in only 1U of rack space
  |
|
|
|
Consoles
The following hardware components are required for each KVM console:
A VGA, SVGA, or MultiSync monitor capable of displaying the highest
resolution provided by any computer in the installation
Keyboard and mouse (PS/2 or USB
Computers
The following hardware components are required for each computer:
VGA, SVGA, or MultiSync video graphics card with an HDB-15 port;
or, for Sun legacy systems, a Sun 13W3 video port
PS/2 mouse and keyboard ports (6-pin Mini-DIN), or at least one USB port;
or, for Sun legacy systems, a Sun style keyboard port (8-pin Mini-DIN)
|
 |
|
|
|
1 KH2516 Cat 5 KVM Switch
1 Power Cord
1 Grounding Wire
1 Firmware Upgrade Cable
1 Rack Mount Kit
1 Foot Pad Set (4 pcs.)
1 User Manual
1 Quick Start Guide
|
|
|
|
|
| Number of Users |
2 |
| Computer Connections |
| Direct |
16 |
| Daisy Chain or Cascading |
4096 |
| Port Selection |
OSD |
| Console Connectors |
| Keyboard |
2 x 6-pin Mini-DIN Female(Purple); 2 x USB Type A Female |
| Monitor |
2 x HDB-15 Female (Blue) |
| Mouse |
2 x 6-pin Mini-DIN Female(Green); 2 x USB Type A Female |
| Flash ROM Upgrade |
1 x RJ-11 Female (Black) |
| CPU Connectors |
| Keyboard, Mouse, and Monitor |
16 x RJ-45 Female |
| Cascade |
2 x RJ-45 Female |
| Connectors |
| Power |
1 x 3-prong AC socket |
| Switches |
| Reset |
1 x Semi-recessed pushbutton |
| F/W Upgrade |
1 x Slide |
| Power |
1 x Rocker |
| LEDs |
| On Line |
16(Green) |
| Selected |
16(Red) |
| Power On |
1(Blue) |
| Emulation |
| Keyboard |
PS/2; USB(PC, Mac, Sun) |
| Mouse |
PS/2; USB(PC, Mac, Sun) |
| Video Resolution |
1280x1024@75Hz(120 ft. Max.); 1600x1200@60Hz(100 ft. Max.) DDC2B |
| Scan Interval |
1~255 Seconds |
| Power Input Rating |
| Per AC Power Inlet, 50/60Hz |
100~240 VAC; 50/60 HZ; 1A |
| Power Consumption |
|
| Environment |
| Humidity |
0~80% RH, Non-condensing |
| Operation Temperature |
32~122 F (0~50 C) |
| Storage Temperature |
-4~ 140 F (-20~60 C) |
| Unit Dimensions |
| Width |
17 in |
| Height |
1.7 in |
| Depth |
11.3 in |
| Unit Package Dimensions |
| Width |
24.75 in |
| Height |
4.375 in |
| Depth |
12.9 in |
| Master Carton |
| Width |
25 in |
| Height |
14 in |
| Depth |
15.5 in |
| Weight |
| Master Carton Wt. |
37.5 lbs |
| Unit Pack Wt. |
12 lbs |
| Unit Wt. w/accessories |
9 lbs |
| Unit Wt. |
8.2 lbs |
| Physical Properties |
| Housing |
Metal |
| Case Qty |
3 |
|
|
|
|
| | |
|
| |
