| 16-port KVM switch with shared local remote access unit(500 ft away) bundle kit |
|

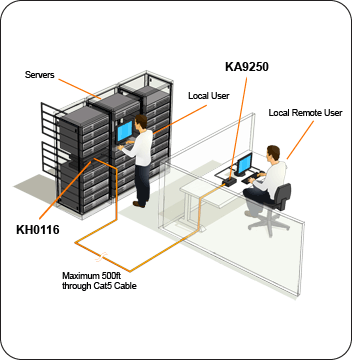

ATEN's KH0116EXKIT offers two users (one local and one local remote) to shared access 16-port computers directly. The remote local user can be 500 feet away from the KVM box. It provides a convinient way for IT administrators to monitor/access the connected computers from their desks. Specially designed high density console connectors allow a 16 port KVM switch to use only a 1U high rack space, and control up to 512 computers through daisy chaining. Attach the option IP unit, CN5000, the user can control attached computers anywhere around the world. This switch offers many advanced features such as an intuitive OSD (On Screen Display), Hot Keys, excellent video resolutions, 2 level password security for users with different security clearance, flash ROM for firmware upgrade, remote console and more. |
|
|
 |
|
|
- Two uses (one local and one remote local) shared aceess
- Remote user allows control of KVM from up to 500 ft away
- High density 16 port KVM switch is rack mountable and only 1U high
- Dedicated chain ports allow daisy chaining up to 31 additional units and control up to 512 computers from a single console
- "Hot-pluggable feature allows adding or removing switches or computers without having to power down the switch
- "Keep-Alive feature assures all the keyboard and mouse connections work properly if the KVM switch loses power supply temporarily
- Two level password security - an administrator and up to four users, separate files for each, only authorized users viewing and controlling the computers
- Two level logout - manual and timed
- Convenient computer selection via intuitive On Screen Display (OSD) menu or Hot Key combinations
- Auto-sensing of station positions for daisy chained installations - no need for manual DIP switch setting
- Front panel LED indicates station position
- Port names automatically reconfigured when station sequence is changed
- Superior video quality - supports resolutions of up to 1920 x 1440
- 19" Rack mountable
- Life time free firmware upgradeable through flash ROM
|
|
|
|
|
Console:
- VGA, SVGA, or Multisync monitor
- PS/2 mouse
- PS/2 keyboard
Computers:
- VGA, SVGA or Multisync card
- 6-pin mini DIN (PS/2) mouse port
- 6-pin mini DIN (PS/2) keyboard port
- For USB computers: USB to PS/2 adapters are required.
KA9250
- VGA, SVGA, or Multisync monitor
- PS/2 style keyboard
- PS/2 style mouse
Note:
Category 5e rated UTP (Unshielded Twisted Pairs) cable is
the minimum required to connect the KA9250 to the KH0116 |
|
|
|
|
- KH0116, KVM unit, x 1
- KA9250, Remote unit, x 1
|
|
|
|
|
| Console Connectors |
| Mouse |
1 x 6 pin mini-DIN |
| Keyboard |
1 x 6 pin mini-DIN |
| Monitor |
1 x HDB-15 F |
| Keyboard, Mouse, and Monitor |
2 x 6 pin mini-DIN, 1 x HDB-15 F @ Remote station |
| Flash ROM Upgrade |
RJ11 |
| Secondary Console |
1 x RJ45 |
| Video Resolution |
1920 x 1440; DDC2 |
| Scan Interval |
User Specified: 1 - 255 secs. |
| Emulation |
| Keyboard |
PS/2 |
| Mouse |
PS/2 |
| Computer Connections |
| Direct |
16 |
| Daisy Chain or Cascading |
512 |
| Daisy Chain |
1 x DB-25M ; 1 x DB-25F |
| CPU Connectors |
| Keyboard, Mouse, and Monitor |
16 x SPDB15F |
| Security |
2-level password security |
| Environment |
| Operation Temperature |
32F~122F (0C~50C) |
| Storage Temperature |
-4F~140F (-20C~60C) |
| Humidity |
0 - 80% RH |
| Physical Properties |
| Housing |
Metal |
| Unit Weight |
14.0 lb. |
| Case Qty |
1 |
| Case Dimension |
26 x 15 x 7 in [ 66 x 38.1 x 17.8 cm] |
| Case Weight |
14.0 lb. |
|
|
|
| | |
|
| |
