CS661

The CS661 Laptop USB KVM expands the basic functionality of file transfer cables by adding USB 2.0 and the capability to control the remote computer using one mouse, keyboard, and display.

Simply connect the unit to your computers, the software automatically installs directly from the CS661, you are then ready to control the remote computer, or start the transfer application for effortless file transfer to, or from the remote computer.

The CS661 Laptop USB KVM offers the ideal portable solution for restoring files, copying music, photos, videos, etc. between two PCs.

Features:

USB-to-USB direct file transfer over USB 2.0 with up to 12MB/sec transfer speeds
KVM functionality allows you to control both your local and remote computers
An additional intergraded USB 2.0 hub allows the local computer to connect to USBperipherals and allows file transfers from external devices such as thumb drives, cameras or external USB hard drives to the remote computer.
Compact design includes built-in cables – nothing to misplace
Intuitive GUI based file management utility allows you to transfer files between two computers with a simple highlight and click.
Desktop scaling – allows the user to adjust for optimal views of the remote desktop by selecting either size or ratio as a reduction method.
The CS661 is bus powered so there are no external power requirements

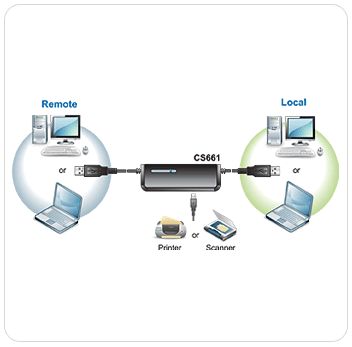

Diagram :

Requirements:

Both Computers
Windows® 2000, XP, Vista

Local computer (Console)*
A computer [or laptop] with a USB 2.0 Type A port

Remote Computer (Target)*
A computer [or laptop] with a USB 2.0 Type A port

* The use of Docking Stations is not recommended.

Package Content:

1 CS661 Laptop USB KVM Switch
1 User Manual
1 Quick Start Guide
1 Carrying Pouch

Specification :

Computer Connections
Direct	2
Local Module Connectors
Unit to Unit	USB Type A Male
Remote Module Connectors
Unit to Unit	USB Type A Male
LEDs
On Line	1 [Blue]
Data	1 [Blue]
USB Specification	1 port USB 2.0
Environment
Operation Temperature	32 - 122 F
Storage Temperature	-4 - 140 F
Humidity	0–80% RH, Non-condensing

Unit Dimensions
Width	1.3 in
Height	.5 in
Depth	3.6 in
Unit Package Dimensions
Width	4.8 in
Height	6.125 in
Depth	2.2 in
Physical Properties
Housing	Plastic
Case Weight	16.6 lbs
Case Dimension	16 x 13 x 11.5 in
Case Qty	30
Unit Weight	.22 lbs
Unit Weight with package	.8 lbs
