2 Port DVI USB KVM

The CS62DU provides features normally found in much larger KVMs.

Start with DVI video which eliminates video distortions caused by the digital to analog conversion inherent with VGA; add 2.1 audio support for the full rich bass produced by a three speaker computer audio system. Top it off with a USB 2.0 port for sharing printers, scanners, external hard drives, etc. Drop the KVM on the floor behind your desk, place the button switch in any convenient location and you have an unbeatable solution to your cluttered desk top.

Switching computers is simply a matter of tapping the one touch switch, or using a  few keystrokes, to independently switch KVM focus and audio, or to initiate Auto scan to monitor your computers at a selectable rate.  Because the CS64DU intercepts switching commands directly from the keyboard, there is no software to install on your computers, and it is compatible with virtually any operating system that is USB and DVI compliant.

A truly unique feature for a KVM of this size is the USB controller built into the mouse port., which allows a powered USB hub to be connected for printer, scanner, hard drive, etc. sharing between the attached computers. Because the connection is a USB controller, the CS62DU supports the programmable buttons on high end mice.

The CS62DU supports full DVI single link 1920x1200 resolution and is DDC2B compliant.

The Auto scan provides a means to automatically monitor your computers at a selectable rate (handy for installs, backups, and other large tasks that don't need constant attention).

Features:
  • One DVI video console controls two USB computers
  • Fully DVI-Digital compliant with resolutions  up to 1920x1200@60Hz; DDC2B
  • Remote port selection switch for convenient switch placement
  • Supports programmable mice
  • USB 2.0 mouse port can be used for USB hub and USB peripheral sharing
  • Compact design, built in all-in-one cables (console 1.2m; computers 0.6m, 1.2m)
  • Audio (microphone and speaker) enabled -full bass response provides a rich experience for 2.1 surround sound systems
  • Independent switching of the KVM and Audio focus - listen to music from one computer while working on the other
  • Auto Scan function to monitor computer operation
  • Bus powered - no adapters to plug in or loose
  • OS Compatibility includes Win2K / XP,Vista,Mac8.6 and higher, LINUX and FreeBSD
WEEE Compliance  RoHS Compliance

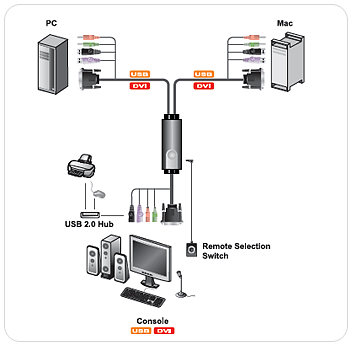

Diagram :
Requirements:
  • USB keyboard and mouse
  • VGA monitor
  • Free USB port on each computer

Optional equipment

  • Powered USB hub
  • Microphone
  • Powered desk top speakers
Package Content:
  • 1x 2-Port USB DVI KVM Switch with Audio
  • 1x Remote Selection Switch
  • 1x User Guide
Specification :
Housing
Case Plastic
CPU Connectors
Mouse 2 x USB Type A Male (Black)
Keyboard 2 x USB Type A Male (Purple)
Monitor 2 x DVI Male (Black)
Microphone 2 x Mini Stereo Plug Male (Pink)
Peripherals Shared Mouse port
Console Connectors
Mouse 1 x USB Type A Female (Black)
Keyboard 1 x USB Type A Female (Purple)
Monitor 1 x DVI Male (Black)
Microphone 1 x Mini Stereo Jack Female (Pink)
Audio 1 x Mini Stereo Jack Female (Green)
LEDs
Selected 2 (Green)
Port Selection Hotkey / Pushbutton
Scan Interval 3, 5, 10, 20 Seconds
Emulation
Keyboard USB
Mouse USB
Computer Connections
Direct 2
Cable Connections
Input Console KB /M 6 in [0.15m] Video 47 in [1.2m]
Output CPU a 23.6in [0.6m] CPU b 47.2in [1.2m]
Peripheral Sharing Mouse Port
Console Selection Push button / Hotkey
Switches
Port Selection Button, Hotkeys
Environment
Operation Temperature 0~50°C
Storage Temperature -20~60°C
Humidity 0~80% RH, Non-condensing
Video
DVI-D( Dual Link) 1920 x 1200 DDC2B
Physical Properties
Housing Plastic
Case Weight 11.6 lb. [5.3 kg]
Unit Weight 1.4 lb. [0.62 kg]
Unit Weight with package 1.8 lb. [0.8 kg]
Case Dimension 12.0 x 18.0 x 11.0 in [30.5 x 45.7 x 28.0 cm]
Case Qty 5
Unit Dimension 3.3 x 1.33 x 0.84 in [8.45 x 3.40 x 2.13 cm]
Unit Package Dimensions 11.0 x 9.0 x 3.0 in [28.0 x 22.9 x 7.7 cm]
