2-port PS/2 KVM switch with audio support

The CS62B 2-Port KVM Switch is a unit that allows a single keyboard, monitor, and mouse tocontroltwo computers.A couple of simple keystrokes directly from your keyboard is all it takes to switch between computers.

The small simple design also allows you to share apowered two speaker audio system, and the audio can be switched independently from KVM functions: listen to music from one computer while working on the other.

An Auto scan mode provides monitoring functionality for time consuming process that don't need constant attention.

Installing the CS62B is merely a matter of connecting the attached cables to your computers, Your mouse, monitor, keyboard, and audio set to the console side of the KVM. The unit is bus powered so there is no adapter to loose.

Features:

One PS/2 console controls 2 PS/2 computers
Compact design, built in 1.8m cables
All-in-one design
With speaker and microphone support
Independent switching of the KVM and Audio focus one computer can have the KVM focus while the other has the audio focus
Superior video quality-up to 2048 x 1536; DDC2B
Auto Scan function to monitor computer operation
Bus-powered, no adapter concerns
Compatible with virtually all PS/2 compliant operating systems

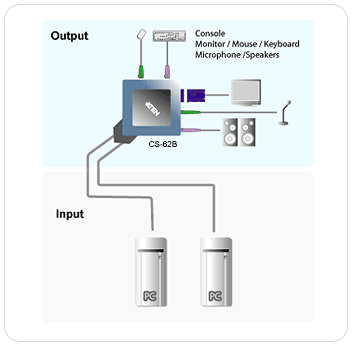

Diagram :

Requirements:

Computers

PS/2 mouse and keyboard ports
VGA video card

Console

PS/2 mouse and keyboard
VGA or Multisync monitor

Optional

Powered computer stereo speakers

Package Content:

1x CS62B 2-Port PS/2 KVM Switch
1x User Manual

Specification :

Physical Properties
Housing	Plastic
Case Weight	29 lbs [13.0 kg]
Unit Weight	1.0 lb [0.5 kg]
Unit Weight with package	1.4 lbs [0.9 kg]
Case Dimension	17 x 12.5 x 14.2 in [49.2 x 31.8 x 36.0]
Case Qty	20
Unit Dimension	3 x 3 x 0.9 in [7.5 x 7.5 x 2.3 cm]
Unit Package Dimensions	6.3 x 2.3 x 9.4 in [16.0 x 5.9 x 23.9 cm]
