| Mini-KVM Switch with built-in cables |
|
The Master View™ CS62 KVM Switch is a simple control unit that allows access to two computer systems from a single console. The CS62 improves on previous models with a 50% smaller desktop footprint and convenient, built-in, custom KVM cables for hassle-free access. The self powered CS62 provides mouse and keyboard emulation,convenient Hot Key combinations to access the connected computers. Setup is fast and easy; plugging cables into their appropriate ports is all that is entailed. |
|
|
 |
|
|
- 1 console controls 2 computers
- Bus powered. · Molded cables - nothing else to buy
- Compatible with all PS/2 compliant operating platforms
- Supports most three button Scroll Wheel mice
- Easy to install, No software required

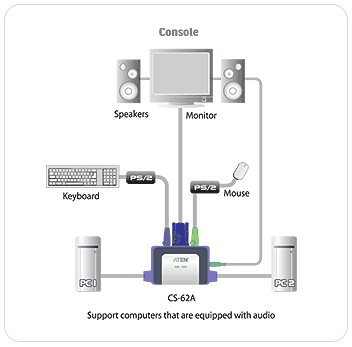

- Connecting the KVM between your mouse, monitor, keyboard, and your computers.
- Easy to operate with a few simple keystrokes directly from your keyboard
- Auto scan function to monitor computer operation
- LED display indicates selected computer
- Caps Lock, Num Lock, and Scroll Lock states are saved and restored when switching
- Keyboard and mouse emulation for error free PC booting
- Patented VSE (Video Signal Enhancement) technology for rich 32 bit color-- up to 1920 x 1440; DDC2B
|
|
|
|
|
Console
- PS/2 Keyboard and mouse
- VGA monitor
Computers
- PS/2 keyboard and mouse connections
- VGA video out.
|
|
|
|
|
- 1 CS62 KVM switch with attached cables
- Quick Start Guid
|
|
|
|
|
| CPU Connectors |
| Mouse |
2x6 pin mini-DIN Female (PS/2) |
| Keyboard |
2x6 pin mini-DIN Female (PS/2) |
| Monitor |
2xHDB15 Male (Std. VGA/SVGA) |
| Console Connectors |
| Mouse |
1x6 pin mini-DIN Female (PS/2) |
| Keyboard |
1x6 pin mini-DIN Female (PS/2) |
| Monitor |
1xHDB15 Female (Std. VGA/SVGA) |
| LEDs |
| Selected |
2 |
| Port Selection |
Hot Keys |
| Video Resolution |
1920x1440; DDC, DDC2, DDC2B |
| Scan Interval |
5 seconds |
| Emulation |
| Keyboard |
PS/2, AT (AT to PS/2 adapter required.) |
| Mouse |
PS/2 |
| Computer Connections |
| Direct |
2 |
| Environment |
| Operation Temperature |
32~122 °F [0°~50°C] |
| Storage Temperature |
-4~140°F [-20°~60°C] |
| Humidity |
0~80% RH, Non-condensing |
| Physical Properties |
| Housing |
Plastic |
| Case Weight |
24.4 lb. [11.1kg] |
| Unit Weight |
0.6 lb. [0.27kg] |
| Unit Weight with package |
1.2 lb. [0.54kg] |
| Case Dimension |
18.5x 15x 15 in [47.00 x 38.10 x 38.10 cm] |
| Case Qty |
20 |
| Unit Dimension |
4.72 x 1.95 x 0.98 in [12.00 x 4.95 x 2.50 cm] |
| Unit Package Dimensions |
9 x 7 x 2.75 in [22.8 x 17.8 x 7.0cm] |
|
|
|
|
| | |
|
| |
