4-port Dual-Link DVI KVMP with USB 2.0 and 2.1 Audio Support

ATEN's CS1784 Dual Link DVI KVMP switch marks a revolutionary step in KVM functionality by combining ATEN's Display Technology with the wide screen graphics resolution of today's 30 inch monitors, supporting resolution up to 3840 x 2400.

This unique KVM can increase efficiency and save equipment cost for applications, where high resolution monitors are required: CAD (computer aided design) and CAM (Computer Aided Manufacturing); Desktop publishing and Graphic design; video editing; and gaming, where high video resolution is demanded.

In keeping with the proliferation of high speed devices, the CS1784 provides two USB2.0 peripheral ports for independently sharing USB devices between your computers. A powered USB hub may be attached to the peripheral ports for added functionality.

The CS1784 is equipped with ATEN's Display Technology, it remembers your monitor's ideal resolution and refresh rate (EDID), making it possible to boot all your computers simultaneously, switch back and forth between computers, and still maintain the ideal video settings of the monitor.

The CS1784 supports full bass 2.1 computer speakers and independent KVM, audio, and peripheral switching

Features:

One console controls four computers.
2 port USB 2.0 peripheral hub [ backwards compatible with USB 1 ]
ATEN's Display Emulation Technology reads and remembers the monitor's settings (EDID) so there is no delay or change of video resolution when switching between, or booting computers.
Cables included
2.0, or 2.1 Audio
independent hotkey switching between KVM focus, USB peripheral, and Audio ports
Switching "Beep" mutable via hotkeys.
Complete keyboard and mouse emulation for error free booting and real-time switching.
Supports MAC keyboard and special keys
Maximum video resolutions:
- DVI-D Dual link: 2560 x 1600
- DVI-D Single link: 1920 x 1200
- Supports Special monitors to 3840 x 2400
Firmware up gradable.
DVI compatible, HDCP pass-through
Mouse emulation may be disabled to allow programmable buttons to function.

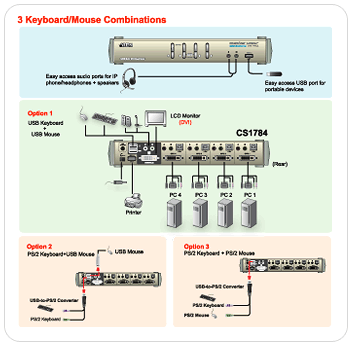

Diagram :

Requirements:

USB or PS/2 Keyboard and mouse
Dual or Single Link DVI video card
A free USB port on each computer

Optional equipment:

Sound card
Appropriate speaker system
Microphone

Package Content:

1 CS1784
1 Power Adaptor
4 Custom DVI Dual Link KVM Cable Set
1 Firmware Upgrade Cable
1 USB to PS/2 Converter

Specification :

Console Connectors
Mouse	USB
Keyboard	USB
Monitor	DVI
Microphone	x 2
Audio	2.1 Stereo
Power
Voltage	5.3 VDC
Amps	2.4 A
Port Selection	Push Button / Hot Key
Power Consumption	13 Watts (max)
KVM Side Connections
Monitor	Dual Link DVI
Audio	2.1 Stereo
Microphone	x 1
keyboard & mouse	USB
Peripheral Sharing	2 x USB2.0
Connectors
Audio Input	2.1 Stereo
Power Adaptor Part #
for North America	0AD8-0605-24EG
for Continental Europe	0AD6-1605-241G
for UK	0AD4-3605-241G
Video
DVI-D( Dual Link)	2560 x 1600@60Hz
DVI-D(Single Link)	1920 x 1200@60Hz / 3840 x 2400@13Hz

Master Carton
Width	13.5 in
Height	9in
Depth	20in
Master Carton Qty.	5
Weight
Unit Wt.	2.2 lbs
Physical Properties
Housing	Metal
Case Weight	23 lbs
Unit Weight	2.0 lbs
Unit Weight with package	6.4 lbs [2.9 kg]
Case Dimension	20 x 9 x 13.5in [51.2 x 23.2 x 34.2cm]
Case Qty	10
Unit Dimension	2 x 10.6 x 3.4in
Unit Package Dimensions	4 x 8.2 x 12.8 in
