| 2 Port USB MasterView KVMP |
|
With increased data bandwidth, true Plug-n-Play compatibility and hot-swappability, USB has become the new standard in low-mid speed peripheral communication. With this in mind, we developed the new MasterView USB KVM switch. Four USB devices and a monitor can be shared among two/four computers using the CS-102U. Use the MasterView with a USB keyboard, USB mouse and two other USB devices - any USB devices. From audio peripherals to Zip™ disks, all USB 1.1 compliant devices will work with the MasterView. If four devices aren't enough, connect a USB hub to increase the number of shared ports. Users with PS/2 mice and keyboards will love our USB-PS/2 adapter, which frees up a shared USB port while providing PS/2 compatibility. With ATEN's USB MasterView, periheral sharing has never been easier. |
|
|
 |
|
|

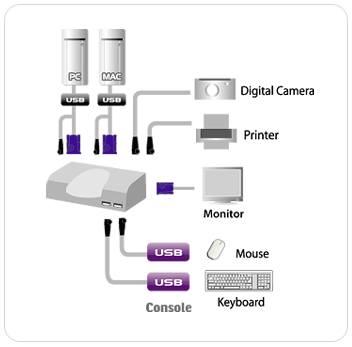

- Use one keyboard, monitor and mouse to control two computers
- Share four USB devices among attached computers USB 1.1 compliance ensures full compatibility with your USB devices
- Operating System-independent operation
- Connected PC's can be added or removed from the setup without powering off the KVM switch
- Plug-n-Play monitor support
- MasterView switches support video resolutions up to 1920 x 1440
- No software required
- Built in AutoScan mode
- Buffering technology prevents system failure LEDs allow for easy status monitoring
- Saves space, power, and equipment costs
- Trim-line, compact design for easy use
- Uses standard connectors to connect computers
|
|
|
|
|
USB Keyboard and Mouse
Open USB port on each computer
VGA or SVGA monitor |
|
|
|
|
- 1 x CS102U
- 2 X USB KVM cable
- 1 x User manual
|
|
|
|
|
| Housing |
| Case |
Plastic |
| CPU Connectors |
| Mouse |
2 x USB Type A female |
| Monitor |
2 x HDB-15 Male (Std. VGA/SVGA) |
| Keyboard & Mouse |
2 x USB Type B female |
| Console Connectors |
| Mouse |
1 x USB Type A female |
| Keyboard |
1 x USB Type A female |
| Monitor |
1 x HDB-15 Female (Std. VGA/SVGA) |
| LEDs |
| Selected |
2 |
| Video Resolution |
1920 x 1440 (Max.); DDC2B |
| Scan Interval |
5 sec. |
| Emulation |
| Keyboard |
USB Plug-n-Play |
| Mouse |
USB Plug-n-Play |
| Computer Connections |
| Direct |
2 |
| Master Carton |
| Master Carton Qty. |
5 |
| Physical Properties |
| Housing |
Plastic |
| Case Weight |
15 lbs. |
| Unit Weight |
0.5 lb |
| Unit Weight with package |
2.2 lbs |
| Case Dimension |
20.25 x 11.5 x 9.5 in. |
| Case Qty |
5 |
| Unit Dimension |
2.6 x 4.7 x 1.7 in |
| Unit Package Dimensions |
13 x 4 x 8.5 in |
|
|
|
|
| | |
|
| |
