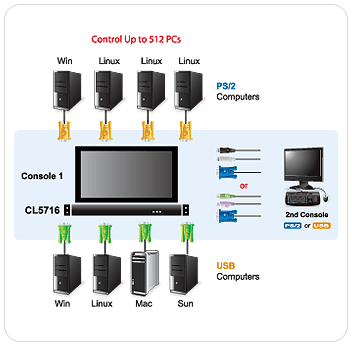

• Space saving technology—up to two consoles (one bus) control up to 8/16 computers
• Extra console port—manage computers in the LCD KVM switch from an external console
• Dual interface—supports PS/2 and USB keyboards and mice in the KVM Ports
• Supports external USB mouse
• USB peripheral support for attached computers
• Convenient station and port selectors, each with two 7-segment LED displays
• Dedicated Hotkey Mode and OSD Invocation Keys
• Convenient computer selection via mouse-driven OSD
• Console lock— locks the console draw to remain securely locked away when not in use
• Daisy chain up to 31 additional KVM switches to control up to 256 computers
• No software required
• Hot pluggable—add or remove computers without powering down the switch
• OSD port list automatically expands when new stations are added
• Auto Scan Mode enables continuous monitoring of user-selected computers
• Security—Administrator/User password authorization for enhanced security protection;
• Two level password security—only authorized users can view and control computers
• OSD screen automatically adjusts to resolution changes
• Supports Windows, Sun, Linux, Mac, Unix, Netware, AIX (RS6000), and DOS 6.2 and later
• Standard 105-key keyboard
• Video resolutions up to 1280 x 1024@ 75Hz.
• Upgradeable firmware—simultaneously upgrade the firmware for all KVM switches on the bus



1x CL5716 KVMP Switch
     with standard Rack Mounting Kit
2x Custom KVM Cable Sets
    (1x PS/2, 1x USB KVM cable, 1.8m long)
1x 5-in-1 console cable
1x Firmware Upgrade Cable
1x Power Cord
1x Grounding Wire
1x User Manual
1x Quick Start Guide
