| Control Center over the NET |
|

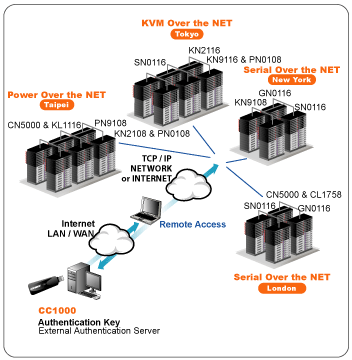

IT professionals' work load increases to the extent their managed IP devices span server racks, building, or even states and continents that a lot of time can be wasted to regularly log in, look at, and control all various IP-enabled KVM switches, serial swithces (terminal servers), and power control units throughout the enterprise. ATEN's CC1000, Control Center over the NET, is a secure software solution - a suppervising access layer that provides a single interface for all ATEN IP devices and the units they control. The USB 'dongle' that comes with CC1000 contains no enterprise-specific data whatsoever; it merely functions as the CC1000 software authorization key. |
|
 |
- Centralized management of multiple data center, branch offices, and remote locations
- Consolodates the management of all your ATEN IP devices*
- Broswer-based GUI interface allows all deviced to be conveniently and securely accessed and controlled by means of a single IP address
- Single tree view of all servers and network equipment for ease of access and operation
- Customizable permission-based groupings and device views
- Multi-user access ATEN IP appliances
- Flexible user access licesing model
- Powerful security feature include secure128-bit SSL encryption and integration with Active Directory external authentication tools
- IP-based access control lists grant or restrict user acess
- Individual user authorization down to the port level
- Flexible session time-outs and password expirations
- Strong user name and password authentication
- View and manage active user sessions and active ports in real time
|
|
|
|
|
-
A supported Operating system:
Win2K, XP, Server2000, Server2003, Vista, Linux (most versions)
-
JDK Ver. 1.5 or higher
-
All Altusen/ATEN IP products must be at a firmware level that
contains the CC Management function, and the CC Management function
must be enabled. Download and install the latest version of the relevant
firmware form our Website if needed.
|
|
|
|
|
- 1 x CC1000 USB authentication key
- 2 x USB cable
- 1 x software CD
- 1 x USB extension bracket
|
|
|
|
|
| Physical Properties |
| Housing |
Plastic |
| Case Weight |
22 Lbs [10kg] |
| Unit Weight with package |
1 Lbs [0.45Kg] |
| Unit Dimension |
3.3 x 0.67 x 5 in [8.4x1.7x1.2 cm] |
| Case Qty |
20 |
| Case Dimension |
19.7 x 13 x 13.4 in [50 x 33 x 34cm] |
| Unit Package Dimensions |
6.3 x 2.3 x 9.4in [16 x 5.9 x 23.9cm] |
|
|
|
|
| | |
|
| |
