| | | KH88: Aten 1U Rackmount 1 user, 8-Port KVM Switch w/ Detachable Front Panel |
| | | | | | | | | | | Options | | | | | | | |
Feartures:
- Detachable front panel module for convenient rack
mounting and cable management
- Controls eight computers from a single console
- Cascadable to three levels from any port - control up
to 512 computers from a single console
- Administrator/User password authorization for enhanced
security protection (PSP)
- Intelligent OSD (On Screen Display) and hotkey
switching for efficient system handling
- No software required - computer selection via front
panel switches, hotkeys, or On Screen Display (OSD)
- Auto Scan feature for monitoring user-selected
computers
- Hot pluggable - add or remove computers without
powering off the switch
- PS/2 mouse emulation for system bootup
- Console's PS/2 mouse controls all connected computers
- PS/2 compatible mouse support
- Superior Video quality: up to 2048 x 1536; DDC; DDC2;
DDC2B
- Supports LCD suspend mode
- Low power warning
- Rack mountable in 19" (1U) system rack
- Patented ASIC Design for Enhanced Functionality and
Compatibility
 |
Requirements: |
 |
|
 |
 |
1 VGA,
SVGA, or Multisync monitor capable of the highest
resolution that you will be using on any PC in the
installation |
|
1 PS/2
Style Mouse |
|
1 PS/2
Style Keyboard |
|
1 VGA,
SVGA or Multisync card |
|
1 6-pin
mini-DIN (PS/2 Style), or DB-9 (standard serial), mouse
port |
|
1 6-pin
mini-DIN (PS/2 Style) keyboard port with +5V DC on pin 4
and Ground on pin 3, or 1 5-pin mini-DIN (AT Style)
keyboard port with + 5 DC on pin 5 and Ground on pin 4 |
|
|
|
|
Package
Content: |
|
|
|
|
1 KH88 KVM
Switch |
|
1 Power
Adapter |
|
1 Rack
Mount kit |
|
1 User
Manual |
|
1 Quick
Start Guide |
|
1 Warranty
Registration Card |
|
|
|
|
Specification
: |
|
|
|
| Case |
|
| Width |
15
in. (38.1 cm) |
| Height |
14.25
in.(36.19 cm.) |
| Length |
25.50
in. (64.77 cm.) |
| Case
Qty. |
3 |
| Computer
Connections |
|
| Direct |
8 |
| Daisy
Chain or Cascading |
512
(via cascade) |
| LEDs |
|
| Selected |
8 x
Orange |
| On
Line |
8
x Green |
| Power
On |
1
x Blue |
| Console
Connectors |
|
| Mouse |
1 x 6
pin mini-DIN female |
| Keyboard |
1
x 6 pin mini-DIN female |
| Monitor |
1
x HDB-15 female |
| Housing |
|
| Case |
Metal |
| Weight |
|
| Case
Wt. |
34.1
lbs. (15.5 kg.) |
| Unit
Wt. |
8.14
lbs. (3.66 kg.) |
| Dimensions |
|
| Height |
1.7
in. (4.32 cm.) |
| Depth |
17
in. (43.18 cm.) |
| Width |
8.5
in. (21.59 cm.) |
| CPU
Connectors |
|
| Keyboard |
1 x 6
pin mini-DIN female |
| Monitor |
8
x 6 pin mini-DIN male |
| Mouse |
1
x 6 pin mini-DIN female |
| Humidity |
0 -
80% RH; Noncondensing |
| Scan
Interval |
1-255
secs (default 5 secs) |
| Power
Consumption |
100-240V
AC; 50 -60 Hz |
| Operating
Temperature |
0 -
50 C |
| Port
Selection |
Front
Panel Switches, OSD, Hotkeys |
| Storage
Temperature |
-20 -
60 C |
|
|
|
|
| | |
|
| |
|
| Estimate my shipping Rate |  | | | Rates may differ from this estimate based on package size, insurance, etc. Your actual shipping rates will be determined when you add items to your shopping cart. |
| KH88: Aten 1U Rackmount 1 user, 8-Port KVM Switch w/ Detachable Front Panel | | |  | | Front View |  | | |
|  | | Back View | | | |
|  | | Front View | | | |
|  | | Mounted View | | | |

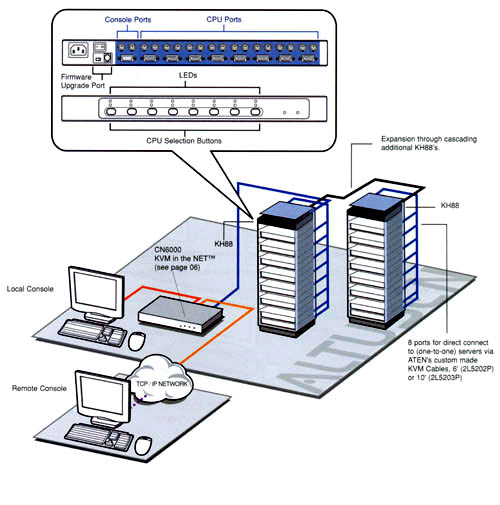

|  | | Diagram | | | |
