Features and Benefits

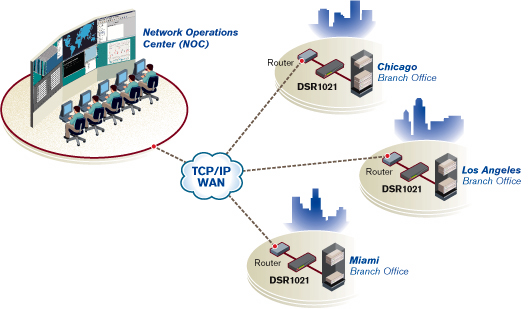

The Avocent?? DSR1021 KVM switch is specifically designed for IT administrators who need to easily troubleshoot, reboot or even power cycle servers or serial devices in branch offices, avoiding the need for costly on-site service calls. The 8-port DSR1021 switch expands the Avocent DS Series patented, field-proven KVM over IP technology and is managed by new DSView?? 3 software. The DSR1021 switch includes external modem support, so IT administrators can manage remote devices if the network is down.

Combined with DSView3 software, SNMP and IPMI support, and a Web browser, the DSR1021 switch provides one-screen, BIOS-level control of your branch offices' servers, routers and DSUs. Hub and spoke failover capability allows users to authenticate when a primary server is unavailable.

• 8-port Digital KVM over IP Switch
• Compact, KVM over IP appliance integrates KVM, an external modem and power control in one solution
• Provides access to an unlimited number of servers or serial devices, no matter their location
• Includes eight configurable ports for maximum flexibility when connecting to servers or serial devices
• Offers IT administrators the ability to dial into a remotely located server or serial device
• Remotely reboot the server to the BIOS level or even power cycle remote devices --- all from a single DSView 3 software interface
• Uses the same management interface for the data center and the branch offices
• Designed for multi-platform servers, including PS/2, Sun and USB
• DSView 3 advanced security includes audit logs and the ability to assign individual user rights
• On-board Web browser support allows direct access to target devices without additional software, a benefit for small companies who want a scalable system that can easily grow with them. DSView 3 management software can be added later as the system grows.

Specifications
Mechanical	Height	1.75 in. (4.45 cm)
	Width	17.00 in. (43.18 cm)
	Depth	11.00 in. (27.98 cm)
	Weight	9 lbs. (3.6 kg) without cables
Environmental	Operating Temp	32 to 104°F (0 to 40°C)
	Storage Temp	-4 to 158°F (-20 to 70°C)
Power	Operating Voltage	100 to 240 VAC
	Power Frequency	50 - 60 Hz autosensing
	Input	40 W maximum
Supported Hardware	Computers	PS/2, Sun, USB
	Monitors	VGA, SVGA (XGA, XGA-II with adaptor) Maximum resolution Local Port: 1600 x 1280 @75Hz, Digital Port Maximum Input Resolution 1280X1024, 75Hz
	Peripherals	USB keyboard and mouse, PS/2 keyboard, PS/2 mouse, IntelliMouse
Standards	Approved Agency	EN55022 Class A,EN55024,EN6200-3-2,EN6100-3-3,FCC15 Class A, VCCI Class A, IEC950,EN60950,UL 1950 third edition, CSA C22.2 No.950
