Features:

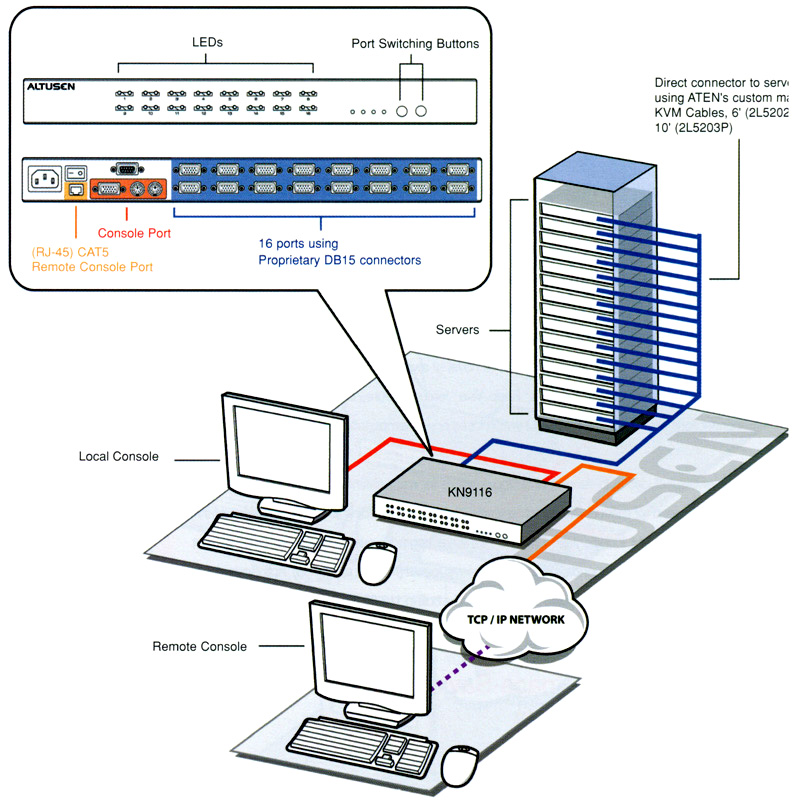

- Remotely access your KVM switches via LAN, WAN, or the internet
- Supports 10Base-T, 100Base-T, TCP/IP, HTTP (Windows OS only)
- Dual bus function support( Local and remote users can access the KN9116 at
the same time)
- Can connect 16 PCs (local console)

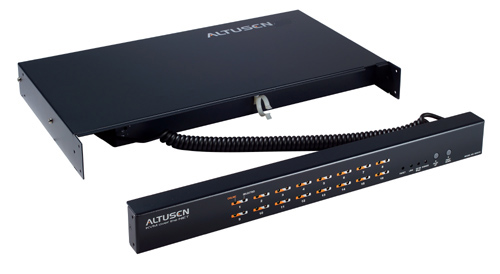

- Extendable front panel for optimal accessibility
- Graphic OSD function support

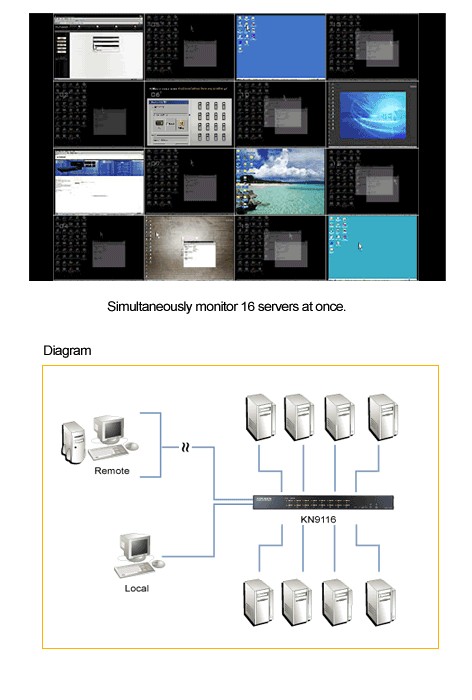

- Can visually support 16 monitoring sessions at the same time
- Advanced security features: password protection, advanced encryption
technologies High video resolution: up to 1600 x 1200
- Windows GUI and Java based Client software; Java client works with all
operating systems
- Upgradeable firmware via RJ45 Ethernet connector.(with default F/W)
- Supports more than one user account.(limit:64,both Graphic OSD and Windows
Base)
 |
Requirements: |
 |
|
 |
 |
For Remote
Computers: |
|
For best
results, computers that remotely access the KN9116
should have at least PIII GHz processor, with screen
resolution set to 1024x748 |
|
For the
Windows Client, you must have DirectX 7.0 or higher
installed |
|
For Java
Client, you must have Sun's Java 2 (1.4 or higher)
runtime environments installed |
|
Browsers
must be 128-bit encryption enabled |
|
Computer
Requirements: |
|
The
following equipment must be installed on the computers
that connect to the KN9116's CPU ports |
|
A VGA,
SVGA or Multi-sync port |
|
A 6-pin
mini-DIN (PS/2) keyboard port |
|
A 6-pin
mini-DIN (PS/2) mouse port |
|
Cables:
2L5202P, additional sizes also available |
|
Substandard
cables may damage the connected devices or degrade
overall performance. If you need additional cables, we
strongly recommend that you see your dealer to purchase
our high quality CS Custom Cable sets. |
|
|
|
|
Package
Content: |
|
|
|
|
1 KN9116
KVM Over the Net, KVM Switch |
|
2 Custom
KVM Cable Sets |
|
1 Power
Cord |
|
1 User
Manual |
|
1 Quick
Start Guide |
|
1
Registration Card |
|
|
|
|
Specification
: |
|
|
|
| Case |
|
| Width |
15.75
in. (40.01 cm.) |
| Height |
13.75
in. (34.93 cm.) |
| Length |
25.25
in. (64.14 cm.) |
| Case
Qty. |
3 |

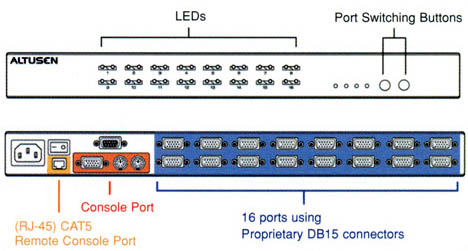

| Connectors |
|
| Video |
1xHDB15-F |
| Mouse |
1x6
pin mini DIN F- Green |
| Keyboard |
1x6
pin mini DIN F- Purple |
| Package
Dimensions |
|
| Width |
24.5
in. (62.23 cm.) |
| Height |
12.5
in. (31.75 cm.) |
| Depth |
4.75
in. (12.065 cm.) |
| Computer
Connections |
|
| Direct |
16 |
| Daisy
Chain or Cascading |
128 |
| Emulation |
|
| Mouse |
PS/2 |
| Keyboard |
PS/2 |
| LEDs |
|
| 10/100
Mbps |
1
(Orange/Green) |
| On
Line |
16
(Green) |
| Power
On |
1
(Blue) |
| Selected |
16
(Orange) |
| Station
ID |
2
x 8 Segments |
| Link |
1
(Green) |
| Console
Connectors |
|
| Keyboard
& Mouse |
2x6
pin mini DIN F (KB-Purple, M-Green) |
| Remote
Console |
1
x RJ45 (CAT5e) |
| Monitor |
1
x HDB-15 F |
| Power |
|
| Voltage |
110 -
220 Auto Sensing |
| Housing |
|
| Case |
Metal |
| Weight |
|
| Case
Wt. |
39.95
lbs. (17.98 kg.) |
| Package
Wt. |
9.24
Lbs. (5.176 kg.) |
| Unit
Wt. |
7.75
Lbs. (4.2 kg.) |
| Dimensions |
|
| Depth |
10.4
in. (26.0 cm.) |
| Width |
17
in. (43.72 cm.) |
| Height |
1.75
in. (4.445 cm.) |
| CPU
Connectors |
|
| Keyboard,
Mouse, and Monitor |
16 x
DB15F |
| Peripherals |
1
x DB-9 male |
| Flash
ROM Upgrade |
VIA
RJ45 |
| Encryption |
128
SSL |
| LAN
Connection |
1 x
RJ45 |
| Ports |
2 x
Push Button (Port-Up/Port-Down) |
| Security |
128-bit
SSL Encryption & 2-Level Password
Security |
| CPU
or KVM Connection |
Local
or Remote |
| Power
Switch |
1 x
Rocker |
| Scan
Interval |
User
Specified: 1 - 255 secs. |
| Video
Resolution |
1600
x 1200; DDC2B |
| Port
Selection |
Hotkeys
or OSD (On Screen Display) |
| Computer
Interface |
Local
or Remote Interface |
| Power
Consumption |
120V/60HZ/12W;
230V/50HZ/12W |
| IDs |
Port
& Name |
| Humidity |
0 -
80% RH |
| Reset
Switch |
1 x
Semi-recessed push button |
| Power
Connections |
3
Prong NEMA 15AMP |
|
|
|
|
| | |
|
| |
;)
;)
;)
;)
;)
;)
;)
