Features:

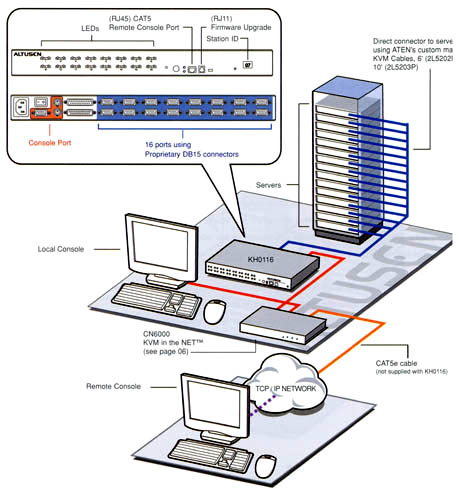

• Control 16 computers directly, or up to 512 computers through daisy chain, with only one keyboard, monitor and mouse
• High density 16 port KVM switch is rack mountable and only 1U high
• Neatly designed, high-quality, custom cable for the high density server rack
• Color-coded connectors for easy installation
• Dedicated chain ports allow daisy chaining up to 31 additional units ?control up to 512 computers from a single console
• "Hot-pluggable" feature allows adding or removing switches or computers without having to power down the switch
• "Keep-Alive" feature assures all the keyboard and mouse connections work properly if the KVM switch loses power supply temporarily
• Auto-sensing of station positions for daisy chained installations - no need for manual DIP switch setting - front panel LED indicates station position
• Port names automatically reconfigured when station sequence is changed
• Two level password security ?an administrator and up to four users, separate files for each, only authorized users viewing and controlling the computers
• No software required, convenient computer selection via intuitive On Screen Display (OSD) menu or Hot Key combinations
• AutoScan offers easy monitoring of connected computers
• PS/2 keyboard & mouse emulation for smooth switching and simultaneously booting multiple computers
• Remote console allows control of KVM from up to 500 feet away
• Supports PS/2 compatible mice, Microsoft Intellimouse explorer, Logitech FirstMouse+
• 19" Rack mountable
• Firmware upgradeable through flash ROM
• 110-220V auto-sensing power supply

Requirements:

Console: VGA, SVGA, or Multisync monitor capable of the highest resolution that you will be using on any computer in the installation; PS/2 mouse; PS/2 keyboard. The following equipment must be installed on each computer: VGA, SVGA or Multisync card; 6-pin mini DIN (PS/2) port; Either a 6-pin mini DIN (PS/2) keyboard port, or a 5-pin DIN (AT) keyboard port. For USB computers: USB to PS/2 adapters are required. For SUN servers: Servers with VGA and PS/2 connections (such as the SUN Cobalt)are supported; the legacy 13W3 SUN servers require additional adapters. The Spac SUN workstation with USB connection is supported with an additional adapter. Cables: For optimum signal integrity and to simplify the layout, we strongly recommend that you use the following high quality Altusen Custom Cables: Altusen KVM to computers: KC5201P - 4?#60;/td> KC5202P - 6?#60;/td> KC5203P - 10?#60;/td> Altusen KVM to Altusen KVM (Daisy Chaining): KC1700 - 2?#60;/td> KC1701 - 4?#60;/td> (Note: 1. KL0116 does not support serial mice. You cannot use Serial-to-PS/2 adapters with the extender cables 2. If your computer uses an AT style keyboard socket you will need to purchase a STANDARD PS/2-to-AT keyboard adapter, in order to plug the cable into keyboard port of the computer.)

Package Content:

1 x KH0116 2 x Custom KVM cable set 1 x RJ11 to serial cable 1 x Power cord 1 x Rack mount kit 1 x User manual 1 x Quick start guide 1 x Warranty registration card

Specification :

Case   Width 15.75 in. (40.01 cm.) Height 13.75 in. (34.93 cm.) Length 25.25 in. (64.14 cm.) Case Qty. 3 Package Dimensions   Width 24.5 in. (62.23 cm.) Depth 4.75 in. (12.065 cm.) Height 12.5 in. (31.75 cm.) Computer Connections   Daisy Chain or Cascading 512 Direct 16 Emulation   Keyboard PS/2 Mouse PS/2 LEDs   On Line 16 (Green) Power On 1 (Blue) Selected 16 (Red) Station ID 2 x 7 Segments Console Connectors   Keyboard 1 x 6 pin mini-DZN F Remote Console 1 x RJ45 Flash ROM Upgrade RJ11 Mouse 1 x 6 pin mini-DZN F Monitor 1 x HDB-15 F Power   Voltage 110 - 220 Auto Sensing Housing   Case Metal Weight   Package Wt. 11.5 Lbs. (5.176 kg.) Unit Wt. 7.75 Lbs. (3.49 kg.) Case Wt. 39.95 lbs. (17.98 kg.) Dimensions   Width 17 in. 43.18 cm.) Depth 8.4 in. (21.34 cm.) Height 1.75 in. (4.445 cm.) CPU Connectors   Keyboard, Mouse, and Monitor 16 x DB15F Scan Interval User Specified: 1 - 255 secs. Port Selection Hotkeys ; OSD (On Screen Display) Daisy Chain 1 x DB-25M ; 1 x DB-25F Power Connections 3-Prong AC Video Resolution 1920 x 1440; DDC2 Humidity 0 - 80% RH
