Features:

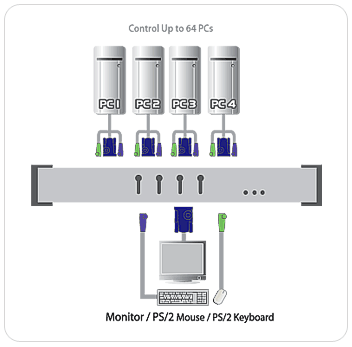

- Cascadable to three levels - Control up to 64 PCs from a single console
- No software required - PC selection via front panel switches, Hot Keys, or OSD (On Screen Display)
- Quick View Scan feature for monitoring selected PCs
- PS/2 and serial mouse emulation provided for system bootup
- Console's PS/2 mouse controls all connected PCs - even those with serial mice
- Microsoft Intellimouse Pro, Logitech FirstMouse, MouseMan, IBM Scrollpoint Mouse
- Support SVGA, VGA and Multisync monitor support Superior video quality; 1920x1440; DDC2B LED display for easy status monitoring Supports high quality CS series custom connector cables
- Rack mountable in 19" system rack
- Hot Pluggable - add or remove PCs for maintenance without powering down the switch
Requirements:
- 1 VGA, SVGA, or Multisync monitor capable of the highest resolution that you will be using on any PC in the installation
- 1 PS/2 Style Mouse
- 1 PS/2 Style Keyboard
- 1 VGA, SVGA or Multisync card
- 1 6-pin mini-DIN (PS/2 Style), or DB-9 (standard serial), mouse port
- 1 6-pin mini-DIN (PS/2 Style) keyboard port with +5V DC on pin 4 and Ground on pin 3, or 1 5-pin mini-DIN (AT Style) keyboard port with + 5 DC on pin 5 and Ground on pin 4
Package Content:
- 1 x CS9134 KVM Switch
- 1 x Power Adapter
- 2 x Rack Mounting Brackets with Screws
- 1 x User Manual
- 1 x Quick Start Guide
Specification:
| * Master Carton |
|
| Width |
14.75 in. (39.37 cm.) |
| Depth |
22.5 in. (57.15 cm.) |
| * Master Carton Qty. |
3 |
| Height |
10.3 in. (26.16 cm.) |
| *** Unit Package Dimensions |
|
| Length |
21.3 in (54.2 cm) |
| Height |
9.3 in (23.6 cm) |
| Width |
4.6 in (11.7 cm) |
| Computer Connections |
|
| Daisy Chain or Cascading |
64 |
| Direct |
4 |
| Emulation |
|
| Keyboard |
PS/2 |
| Mouse |
PS/2, Serial |
| LEDs |
|
| On Line |
4 (Green) |
| Power On |
1 (Blue) |
| Selected |
4 (Orange) |
| Console Connectors |
|
| Mouse |
1x6 pin mini-DIN Female (PS/2) |
| Monitor |
1xHDDB15 Female |
| Keyboard |
1x6 pin mini-DIN Female (PS/2) |
| Power |
|
| Voltage |
DC 9V |
| Housing |
|
| Case |
Metal |
| Weight |
|
| Unit Pack Wt. |
7.7 lb (3.55 Kg) |
| Master Carton Wt. |
25.6 lb (11.79 Kg) |
| **** Unit Dimensions |
|
| Height |
1.7 in + remoevable leg = 2.5 in (6.35 cm) |
| Length |
18.0 in (45 cm) |
| Width |
6.1 in ( cm) |
| CPU Connectors |
|
| Keyboard |
4x6 pin mini-DIN Female (PS/2) |
| Monitor |
4xHDDB15 Male |
| Mouse |
4x6 pin mini-DIN Female (PS/2) |
| Video Resolution |
1920x1440; DDC2B |
| Scan Interval |
3, 5, 10, 15, 20, 30, 40, 60 seconds |
| Power Adaptor |
1 x DC Jack |
| Port Selection |
Push Buttons, Hot Keys, or OSD |
| Power Consumption |
DC 9V, 900mW |
| | |
|
| |
