Features
- Integrated KVM console featuring a 15" or 17" LCD monitor in Slideaway?housing.
- Dual consoles- simultaneous viewing and control or select one or the other via OSD.
- Compatible with ATEN KVM Switches and servers.
- Internal power built in.
- Less than 1 U high mountable rack
- Adjustable depth to fit within the rack DDC emulation of the LCD Monitor-VGA settings of every connected computer are automaticlaly adjusted for optimal output the LCD monitor.
- Improved design-Single person installation (Optional).
Rack Mounting Kit Depth
Long (Optional) 68cm - 100cm
Short (Standard) 42cm - 72cm
Easy Installation Rack Mounting Kit Depth
Long (Optional) 68cm - 105cm
Short (Optional) 52cm - 70cm
Package Content :
- 1x CL-1200 Slideaway?Console Module with Standard Rack Mounting Kit
- 1x PS/2 KVM Cable (2L-5202P)
- 1x Power Adopter with Power Cord
- 1x User Manual
- 1x Quick Start Guide

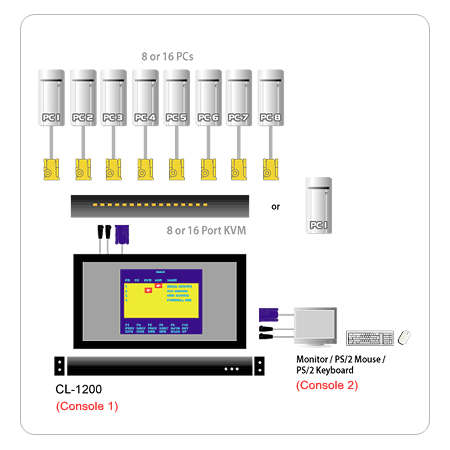

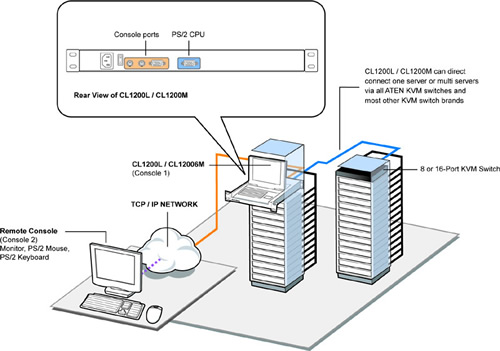

Diagram :
 |
Specification : |
 |
| Function |
CL1200L |
CL1200M |
| Connectors |
CPU Ports |
1 x SPHD-15 Female |
| Exteenal Console |
1 x 6 pin mini-DINF Female (keyboard)
1 x 6 pin mini-DINF Female (mouse)
1 x HDB-15 Female (monitor) |
| Power |
3 prong AC Socket |
| Switches |
1 x Rocker (Poewr)
4 x Buttons (LCD Module adjustment)
1 x Recessed (Reset) |
| LEDs |
1 x Power (Blue)
1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green) |
| Video |
15" LCD : 1024 x 768; DDC2B
|
17" LCD : 1280 x 1024; DDC2B |
| KB/Mouse Emulation |
PS/2 |
| Storage
temperature |
-20˚C~60˚C |
| Operating Temperature |
0˚C ~ 50˚C |
| Humidity |
0~80% RH Noncondensing |
| Power consumption |
15"LCD:
120V 60Hz 24.8W/230V 50Hz 40.3W |
17" LCD:
120V 60Hz 35.8W/230V 50Hz 57.5W |
| Housing |
Metal |
| Weight |
13.2kgs |
13.7kgs |
| Dimensions
( L x W x H ) |
52 x 48 x 4.2cm |
|
|
;)
;)
;)
