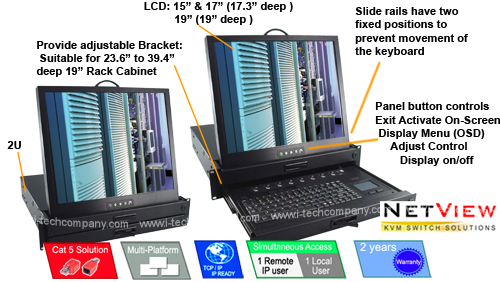

LCD Features

• Only 2U (3.5" high) of vertical 19" rack-mount space.
• Only 17" deep for 15" or 17" LCD and only 19" deep for 19" LCD
• 2U Dual Slides allows see LCD through closed cabinet door
• High-brightness 300-nit,TFT LCD Panel and high contrast-ration active TFT LCD flat panel integrated folding display.
• 19" display supporting 1280 x 1024 resolution.
• Full 95-keys Windows keyboard (including a dedicated numeric keypad), and an integrated 19mm 3-buttons trackball. Optional for other keyboard type see Recommend Accessories for more details.
• Industrial-grade heavy-duty steel construction with a built-in lock to prevent unauthorized console access.

IP Cat5 KVM Features

• High density Cat5 KVM with either 16 or 32 ports in 1U
• Increased distance of 40m between your server & KVM switch
• Enhanced rear cable management using Cat5 cords
• Mix PS/2, USB & SUN with Multi- Platform switch capability
• Secure remote user access across the world wide web
• Use of the RJ45 Cat5 interface allows for a higher number of ports in smaller density
• Greater distances between your switch and servers allow enhanced data centre rack layouts
• Traditional Cat5 cords, when compared to coaxial cables, provide simple cable management
• Mix legacy PS/2 servers with newer USB and SUN solutions
• 128 bit secure browser based user access from anywhere in the
• world over IP
• Multi lingual on screen display menu
• Advanced user profiles and configurable OSD hot key combinations
• Dual power with failover
• 12, 24 and 48 volt DC power options

Designed for:

Top

LCD Specification

LCD   Panel Samsung 19" LCD Panel Screen Type TFT Display Area 386.4(H) x 289.8(V) mm Contrast Ratio 700 : 1 Viewing Angle 170 ° (H) x 170 ° (V) (Typ.) Resolution 1280 x 1024 Pixel pitch 0.242(H) x 0.242(W) mm Response Time Tr=15ms, Tf=10ms (Typ.) Brightness 250 cd/m2 Panel Color 16.7M Back Light 4 CCFTs (Cold Cathode Fluorescent tube) Video Horizontal Synchronization 64 KHz (Max.) Vertical Synchronization 60 Hz (Max.) Input Signal Analog RGB 0.7Vp-p Power Management VESA DPMS Control OSD Control Brightness, Contrast, Colour, Clock, H.Position, V.Position, Phase, Scaling, Auto config, Input select, Multi window, Clear EEPROM, OSD adjust, Save External Connection Power Input 12V/5A DC adapter Video Input 15-pin D-Sub connector Dimension Product dimension 48.2(W) x 8.8(H) x 48(D)cm Packing dimension 59.5(L) x 57(W) x 22(H)cm

KVM Technical Specification

Top

Mechanical drawing

Top

High Density IP Cat5 KVM

Expanding its range of server management solutions NetView introduces its new high density IP console 16 and 32 port Cat5 KVM switches. Designed to provide added benefits to its users the new switch range offers increased density, increased distances, enhanced cable management and multiplatform capabilities over traditional KVM switch platforms. Using either a PS/2 or USB dongle at the server end of the installation allows a user to cost effectively specify the switch to match the exact server configurations - multiplatform switches allow older or redundant servers to be migrated to servers with newer USB interfaces without replacing switch hardware.

Secure Remote IP Access
A second user can work securely via a remote Keyboard, monitor and mouse across the World Wide Web using 128 bit secure IP access. This plug and play technology requires no software to be installed on the servers or remote PC's but provides seamless secure access over IP via a web browser. Secure IP access allows the ultimate server control even to BIOS level of your infrastructure.

Enhanced User Interface
The user interface or OSD menu also offers many enhanced features for switch administration and user management, as an example the OSD allows Super Users to create custom user profiles / access rights for specific KVM ports. The OSD hotkey can also be configured using different key combinations and the multilingual interface allows users to select English, French, German, Spanish, Italian, Russian, Japanese and Simplified Chinese.

Remote access via browser	IP access up to BIOS level

Top

Options

	Optional Power Input Selection (12, 24, 48-Volt DC)
	Optional Video Inputs (Supports PAL and NTSC, Composite video, S-Video)
	Optional Touchscreen (Excluding RKP119 Series)
