1U Keyboard drawer
LCD Drawer & KVM Benefits:
• High density Cat5 KVM with either 16 or 32 ports in 1U
• Cost efficient DB-15KVM integration
• Single or One Man installation slide for easy, quick installation
• 104 key notepad keyboard with full numerical pad
• Mix PS/2, USB & SUN Multi-Platform switch capability
• Secure remote User access across the world wide web
|
 |
Top
|
CAT5 2 Console KVM Diagram:
 |
Top LCD Features
• 1U rackmount drawer with either 17" or 19" SAMSUNG LCD
• Either PS/2 or USB input to the LCD Drawer by cable selection
• Multiple keyboard language selections with either touchpad or trackball
• slide rails with fixed positions to prevent drawer movement when typing
• Multi lingual on screen display meun
• 12, 24 and 48 volt DC power options
KVM Feature:
Use of the RJ45 Cat5 interface allows for a higher number of ports in smaller density
Greater distances between your switch and servers allow enhanced data centre rack layouts
Traditional Cat5 cords, when compared to coaxial cables, provide simple cable management
Mix legacy PS/2 servers with newer USB and SUN solutions
Enhanced data centre security with a second user or console up to
300m from the installed switch / server
Multi lingual on screen display menu
Advanced user profiles and configurable OSD hot key combinations
12, 24 and 48 volt DC power options
Top
Accessories
| IF-DPS2 |
IF-DUSB |
CC600 |
CAT5-3
CAT5-6
CAT5-10
CAT5-15 |
 |
 |
 |
 |
| USB dongle |
PS/2 dongle |
6ft cascade cable |
Cat5 cable
3ft, 6ft, 10ft & 15ft |
High Density Cat5 KVM with Two Console
Expanding its range of server management solutions Austin Hughes introduces its new high density two console 16 and 32 port Cat5 KVM switches. Designed to provide added benefits to Its users the new switch range offers increased density, increased distances, enhanced cable management and multiplatform capabilities over traditional KVM switch platforms. Using either a PS/2 or USB dongle at the server end of the installation allows a user to cost effectively specify the switch to match the exact server configurations - multiplatform switches allow older or redundant servers to be migrated to servers with newer USB interfaces without replacing switch hardware.
Secure Remote Access
The second console allows a user to work securely via a remote Keyboard, monitor and mouse over a Cat5 link up to 300m away from the installed switch / servers. This plug and play technology requires no software to be installed on the servers but provides seamless secure access over Cat5 4 pair copper cable to all switch ports allowing access to your servers even if the Ethernet / WAN network has failed or is unavailable.
Enhanced User Interface
The user interface or OSD menu also offers many enhanced features for switch administration and user management, as an example the OSD allows Super Users to create custom user profiles / access rights for specific KVM ports. The OSD hotkey can also be configured using different key combinations and the multilingual interface allows users to select English, French, German, Spanish, Italian, Russian, Japanese and Simplified Chinese.
Top
LCD Specification
|
| LCD |
| Panel |
Samsung 19" LCD Panel |
| Screen Type |
TFT |
| Display Area |
386.4(H) x 289.8(V) mm |
| Contrast Ratio |
700 : 1 |
| Viewing Angle |
170 ° (H) x 170 ° (V) (Typ.) |
| Resolution |
1280 x 1024 |
| Pixel pitch |
0.242(H) x 0.242(W) mm |
| Response Time |
Tr=15ms, Tf=10ms (Typ.) |
| Brightness |
250 cd/m2 |
| Panel Color |
16.7M |
| Back Light |
4 CCFTs (Cold Cathode Fluorescent tube) |
| Video |
|
| Horizontal Synchronization |
64 KHz (Max.) |
| Vertical Synchronization |
60 (Max.) |
|
|
| Input Signal |
Analog RGB 0.7Vp-p |
|
|
| Power Management |
|
| VESA DPMS |
|
|
|
| Control |
|
| OSD Control |
Brightness, Contrast, Colour, Clock, H.Position, V.Position, Phase, Scaling, Auto config, Input select, Multi window, Clear EEPROM, OSD adjust, Save |
|
|
| External Connection |
|
| Power Input |
12V/5A DC adapter |
| Video Input |
15-pin D-Sub connector |
| Dimension |
|
| Product dimension |
43.9(W) x 4.45(H) x 65(D)cm |
| Packing dimension |
73.5(L) x 57.5(W) x 18(H)cm |
|
|
KVM Technical Specification
|
| KVM Port |
| Number of ports : |
16or32 |
| Connector: |
RJ-45 |
| Connectivity: |
USB type or PS/2 type dongle, up to 40 meter ( 132 feet) |
| Local Console |
| Graphic connector: |
HDDB15-pin HDDB15-pin, VGA |
| Resolution: |
Up to 1600x1200 |
| Input device: |
2 x USB type A for keyboard & mouse |
| Remote Console |
| Connector: |
HDDB15-pin, VGA |
| Resolution: |
Up to 1600 x 1200 (500feet)
Up to 1024 x768 (1000feet) |
| Input device: |
2 x USB type Afor Keyboard &mouse |
| Remote I/O: |
RJ45 vio Cat5/ Cat5e/cat6/ cable up to 1000feel |
| Compensotion |
Auto adjust for cable length |
| Expansion : |
|
Up to 256 servers by 8-level cascade |
| Compatibility |
| Multi-platform |
Mix PCs, SUNs, IBMs, HPs, DELLs Server |
| :Support: |
Windows Vista, 2003 / XP / 2000, Linux, Netware, Unix |
| Power |
| Input: |
100-240VAC, 50 or 60Hz, IEC type cord |
| Option DC : |
12V/24V/48V DC input |
| Consumption : |
Max. 25 Watt |
| Regulatory Approval |
|
FCC,CE |
| Environmental |
| Operating : |
0 to 50"C |
| Storage: |
-10 to 60-C |
| Relative humidity: |
90%, non-condensing |
| Shock: |
50G peak acceleration (11 ms, half-sine wave) |
| Vibration : |
58~100Hz / 0.98G (11 min / cycle) |
|
Top

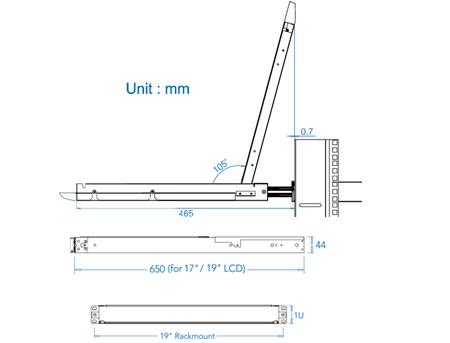

Mechanical Drawing
(e) SUN keyboard
(b) SUN Keyboard
|
