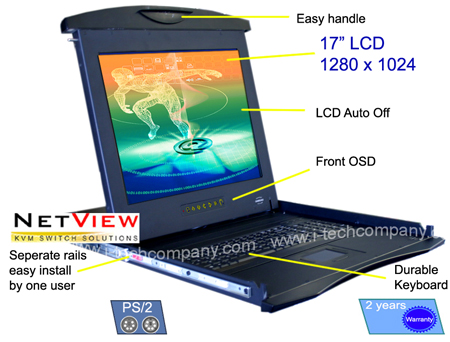

1U Keyboard drawer
LCD Drawer & KVM Benefits:
• Cost efficient DB-15KVM integration with either 16 or 8 ports in 1U
• Single or “One Man?installation slide for easy, quick installation
• 104 key notepad keyboard with full numerical pad
• Mix PS/2, USB & SUN Multi-Platform switch capability
• Secure remote User access across the world wide web
|
 |
Top
Diagram:
 |
Top LCD Features
• 1U rackmount drawer with either 17" or 19" SAMSUNG LCD
• Either PS/2 or USB input to the LCD Drawer by cable selection
• Multiple keyboard language selections with either touchpad or trackball
• slide rails with fixed positions to prevent drawer movement when typing
• Multi lingual on screen display meun
• 12, 24 and 48 volt DC power options
KVM Feature:
| • |
Multi-platform-mix PCs, SUNs, IBMs, HPs, Compaq & DELL |
| • |
Support 8 characters password protection & search PC server name |
| • |
Cascades for use with up to 128 servers |
| • |
New keep alive feature safeguards server for power loss to the switch |
| • |
Built-in microprocessor emulation for each port boots up process |
| • |
Auto scan-mode for monitoring your servers at intervals 5 to 99s |
| • |
Hot-pluggable when adding or removing PC w/o powering down the switch |
| • |
Name you server up to 16 characters long |
| • |
No software needed & all mounting hardware included |
Top
Package Content:
| • |
(1) NX Series KVM drawer unit |
| • |
(8) 3-in-one KVM cable, 6-feet |
| • |
(2) Rear extension mounting brackets |
| • |
(8) Mounting screws for rear extension mounting brackets |
| • |
(4) Fasteners |
| • |
(1) Power cord |
| • |
(1)Power Adapter 110/220V |
Top
LCD Specification
|
| LCD |
| Panel |
Samsung 17" LCD Panel |
| Screen Type |
TFT |
| Display Area |
337.92(H) x 270.34(V) mm |
| Contrast Ratio |
500 : 1 |
| Viewing Angle |
140 ° (H) x 120 ° (V) (Typ.) |
| Resolution |
1280 x 1024 |
| Pixel pitch |
0.264(H) x 0.264(W) mm |
| Response Time |
Tr=5ms, Tf=20ms (Typ.) |
| Brightness |
300 cd/m2 |
| Panel Color |
16.2M |
| Back Light |
4 CCFTs (Cold Cathode Fluorescent tube) |
| Video |
|
| Horizontal Synchronization |
64 - 80 KHz (Typ.) |
| Vertical Synchronization |
60 - 75 Hz (Typ.) |
| Input Signal |
Analog RGB 0.7Vp-p |
|
|
| Power Management |
|
| VESA DPMS |
|
|
|
| Control |
|
| OSD Control |
Brightness, Contrast, Colour, Clock, H.Position, V.Position, Phase, Scaling, Auto config, Input select, Multi window, Clear EEPROM, OSD adjust, Save |
|
|
| External Connection |
|
| Power Input |
12V/5A DC adapter |
| Video Input |
15-pin D-Sub connector |
|
|
KVM Technical Specification
|
Channel Port |
8
16 |
PC Port Connector (All Female Type) |
PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin |
Cascade Port Connector (All Female Type) |
PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin |
Channel Port Connector (All Female Type) |
HDDB 15 pin |
Channel Port Connection (Male to Male) |
HDDB 15 pin 3-in-1 Cable |
PC Selection |
On Screen Display Manual, Hot Ke, Push Button |
LED |
1 Bank LED
4/8/16 Online Port LED (Green)
4/8/16 Selected Port LED (Red) |
On Screen Display Control |
Yes |
Scan Intervals |
5~99 sec. |
Keyboard Emulation |
PS/2 |
Mouse Emulation |
PS/2 |
VGA Resolution |
1920 x 1440 |
Bandwidth |
200MHz |
Cascade MAX Level |
8 levels |
MAX. PC Connection |
116(4 ports) / 120 (8 ports) / 128 (16 ports) |
Housing |
Metal |
Power Adapter |
DC 12V 1A |
Operation Temperature |
0~40°C |
Storage Temperature |
-20~60°C |
Humidity |
0~80%, Non-Condensing |
|
Top
Mechanical Drawing
Top |
;)
;)
;)
;)
;)
