1U Keyboard drawer

LCD and KVM Benefits	Diagram
LCD and KVM Fearures	Mechanical Drawing
LCD and KVM Specifications	Accessories

LCD Drawer & KVM Benefits: • High density Cat5 KVM with either 16 or 32 ports in 1U • Cost efficient DB-15KVM integration • Single or “One Man” installation slide for easy, quick installation • 104 key notepad keyboard with full numerical pad • Mix PS/2, USB & SUN Multi-Platform switch capability • Secure remote User access across the world wide web

Top

LCD Features

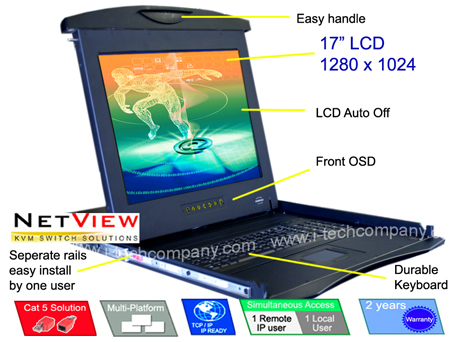

• 1U rackmount drawer with either 17" or 19" SAMSUNG LCD

• Either PS/2 or USB input to the LCD Drawer by cable selection

• Multiple keyboard language selections with either touchpad or trackball

• slide rails with fixed positions to prevent drawer movement when typing

• Multi lingual on screen display meun

• 12, 24 and 48 volt DC power options

KVM Feature:

• Use of the RJ45 Cat5 interface allows for a higher number of ports
in smaller density

• Greater distances between your switch and servers allow enhanced data centre rack layouts

•  Traditional Cat5 cords, when compared to coaxial cables, provide simple cable management

•  Mix legacy PS/2 servers with newer USB and SUN solutions

•  128 bit secure browser based user access from anywhere in the

•  world over IP

• Multi lingual on screen display menu

•  Advanced user profiles and configurable OSD hot key combinations

Top

Accessories

IF-DPS2	IF-DUSB	CC600	CAT5-3 CAT5-6 CAT5-10 CAT5-15
USB dongle	PS/2 dongle	6ft cascade cable	Cat5 cable 3ft, 6ft, 10ft & 15ft

High Density IP Cat5 KVM

Expanding its range of server management solutions NetView introduces its new high density IP console 16 and 32 port Cat5 KVM switches. Designed to provide added benefits to its users the new switch range offers increased density, increased distances, enhanced cable management and multiplatform capabilities over traditional KVM switch platforms. Using either a PS/2 or USB dongle at the server end of the installation allows a user to cost effectively specify the switch to match the exact server configurations - multiplatform switches allow older or redundant servers to be migrated to servers with newer USB interfaces without replacing switch hardware.

Secure Remote IP Access
A second user can work securely via a remote Keyboard, monitor and mouse across the World Wide Web using 128 bit secure IP access. This plug and play technology requires no software to be installed on the servers or remote PC's but provides seamless secure access over IP via a web browser. Secure IP access allows the ultimate server control even to BIOS level of your infrastructure.

Enhanced User Interface
The user interface or OSD menu also offers many enhanced features for switch administration and user management, as an example the OSD allows Super Users to create custom user profiles / access rights for specific KVM ports. The OSD hotkey can also be configured using different key combinations and the multilingual interface allows users to select English, French, German, Spanish, Italian, Russian, Japanese and Simplified Chinese.

Remote access via browser	IP access up to BIOS level

Top

LCD Specification

LCD Panel Samsung 17" LCD Panel Screen Type TFT Display Area 337.92(H) x 270.34(V) mm Contrast Ratio 500 : 1 Viewing Angle 140 ° (H) x 120 ° (V) (Typ.) Resolution 1280 x 1024 Pixel pitch 0.264(H) x 0.264(W) mm Response Time Tr=5ms, Tf=20ms (Typ.) Brightness 300 cd/m2 Panel Color 16.2M Back Light 4 CCFTs (Cold Cathode Fluorescent tube) Video Horizontal Synchronization 64 - 80 KHz (Typ.) Vertical Synchronization 60 - 75 Hz (Typ.) Input Signal Analog RGB 0.7Vp-p Power Management VESA DPMS Control OSD Control Brightness, Contrast, Colour, Clock, H.Position, V.Position, Phase, Scaling, Auto config, Input select, Multi window, Clear EEPROM, OSD adjust, Save External Connection Power Input 12V/5A DC adapter Video Input 15-pin D-Sub connector

KVM Technical Specification

Top

Mechanical Drawing
